We deliver UV DISINFECTION units from stainless steel and filter hosuings.
UV devices
Germicidal devices UVETTA
Germicidal lamps are UV disinfection devices suitable for home or office use. Easy to use, 100% efficient.
Find out more
400 TC Series
In this Series of UV systems uses powerful lamps that will allow, at the same treated flow rate, the use of less lamps and so on easier maintenance
Find out more
AM series
SITA series is the powerful low pressure amalgam lamp, that permits a very good disinfection also with low UV Transmittance values
Find out more
Domestic series
The UV disinfection systems of the DOMESTIC SERIES are the smallest equipments manufactured by us, both for dimensions, and for capacity of water treated.
Find out more
HDPE Series
UV series realized in high density polyethylene UV chambers, that guarantee a long life with agressive water.
Find out more
IT Series
SITA IT VALIDATED series is biodosimetrically tested according Austrian norm and full fit the EPA requirement.
Find out more
Rack LCD series
Disinfection units of Rack LCD Series are composed by one UV chamber with more lamps.
Find out more

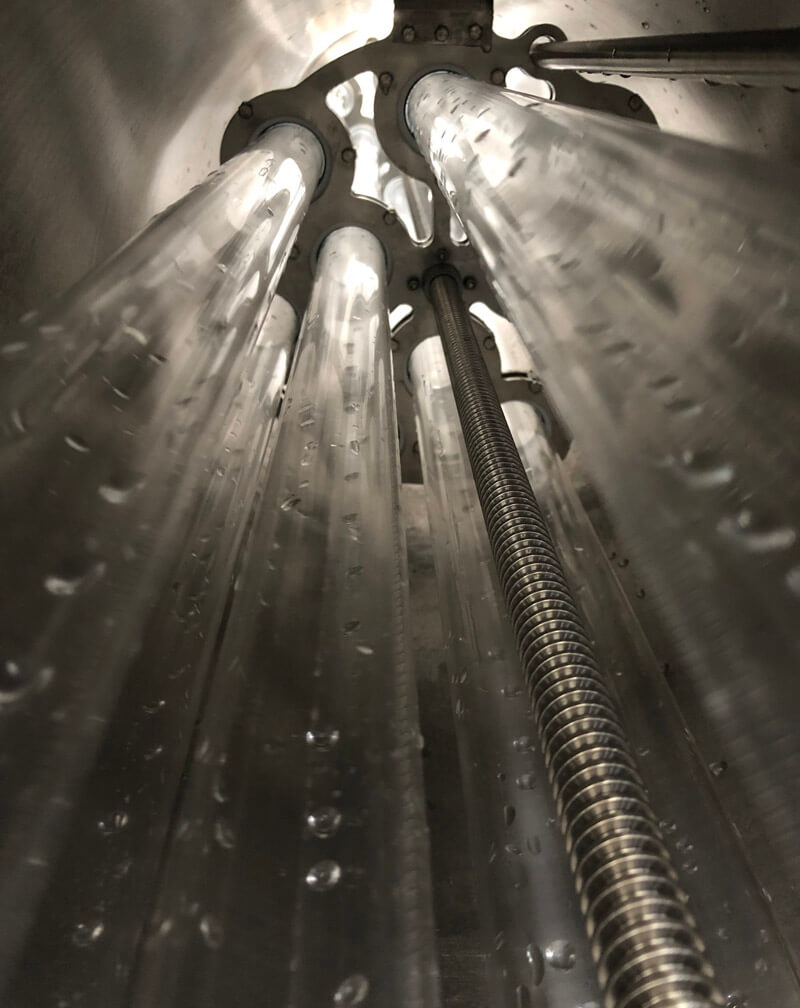

SBT series
SBT Series designed specifically for low UVT trasmittance values.
Find out more
SMP Series
SMP unit has the ability to break chemical bonds, and have a good reduction of unwanted chemicals in water.
Find out more
SMP3 Series
SMP3 je pravděpodobně ta nejmenší střednětlaková jednotka na trhu, vynikající volba pro bazény s nedostatkem prostoru a slabou recirkulací.
Find out more
Special units
The technical office of our producer is able to size UV devices to suit the client's specific request.
Find out more
WHAT ARE UV-C RAYS ?
The small part of electro-magnetic spectrum having wave lengths included between 100 and 400 nm (thousandths of micron) is defined as space of the ultra-violet irradiation. The UV-C are part of the subspace characterized by the wave lengths included between 100 and 280 nm. Electro-magnetic waves with different wave length and width induce interactions with the matter of different nature, the UV-C irradiation with l= 254nm is particularly interesting thanks to its marked germicidal power.
HOW THEY ARE PRODUCED ?
In nature the UV-C rays are part of the secondary cosmic irradiation which, interacting with the high strata of the terrestrial atmosphere, generates ozone and with a lower energy, it reaches ground as tanning UV(A+B) irradiation. Artificially UV-C rays are produced with the help of special fluorescent lamps containing mercury fumes, these lamps are made of a very pure quartz (>99.99% SiO2) transparent to the UV-C light which they emit in an almost monochromatic form (>95% of Ć = 254nm).
HOW MUCH DO THEY WORK ?
For being effective in the disinfection, an electro-magnetic wave, besides being of a certain kind (L = 254nm) it must possess also a minimum value of intensity to be able to ensure a minimum dose to water. A UV sterilizer, if correctly sized, is able to give water a dose sufficient for reducing almost all the commonest micro-organisms present in water. Normally a UV disinfection system must have a UV dose higher than 300 J/m2.
WHY DO THEY WORKS ?
The high germicidal power of this wave length must be sought in DNA and in the link of its fundamental components (nucleotids). DNA is a macromolecule present in all living organisms in which all information necessary for life and reproduction reside. The alteration, induced by the UV-C irradiation, of some chemical links present among nucleotids is able to change the information contained and conveyed by DNA, these alterations prevent its normal activity and this irreversibly leads to the cellular death.
